ONE SAIL
Highly weather-resistant landscape lights – fearless of salt spray/acid rain/extreme temperatures, a 10-year-old coastline guardian.

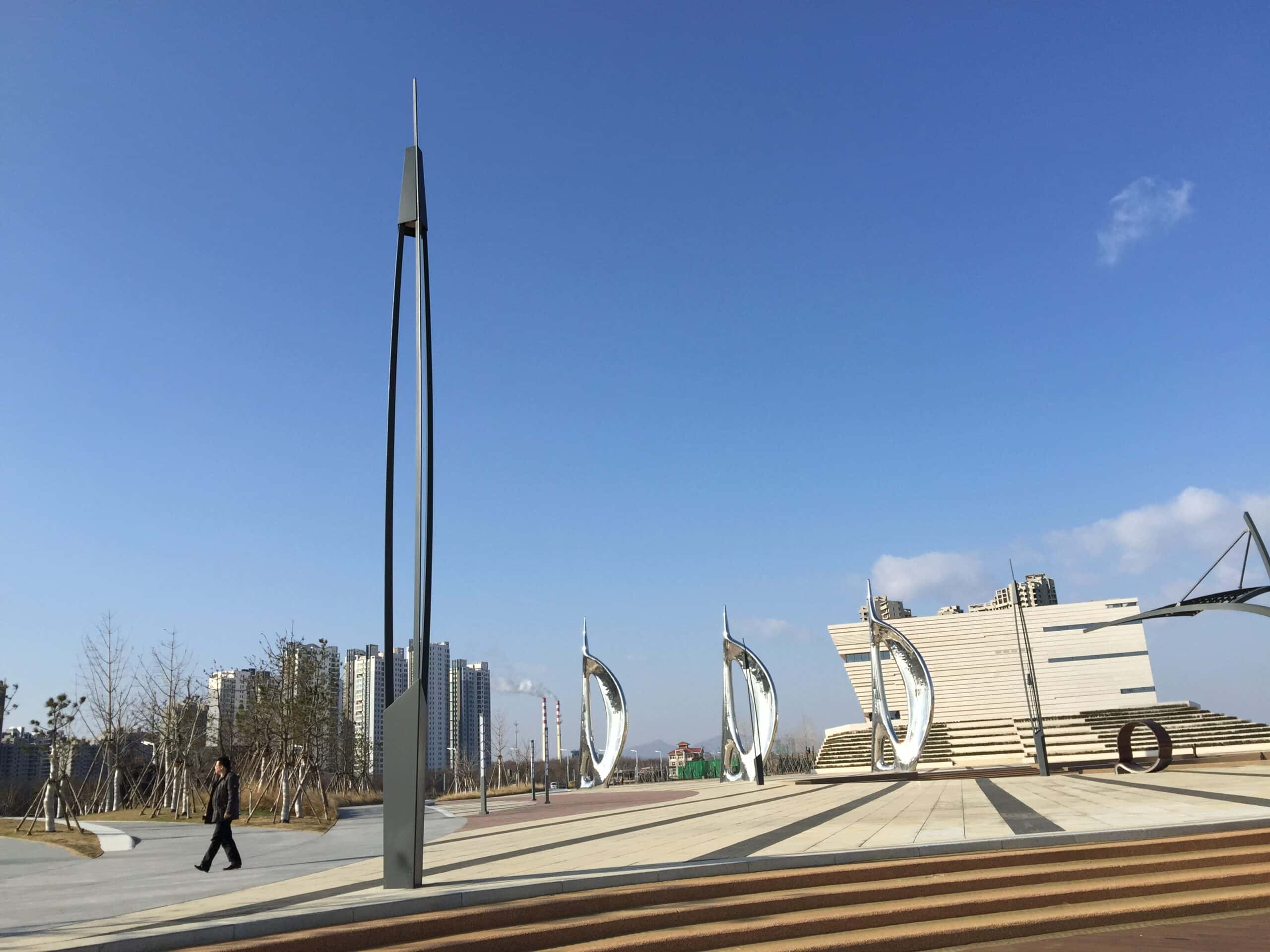

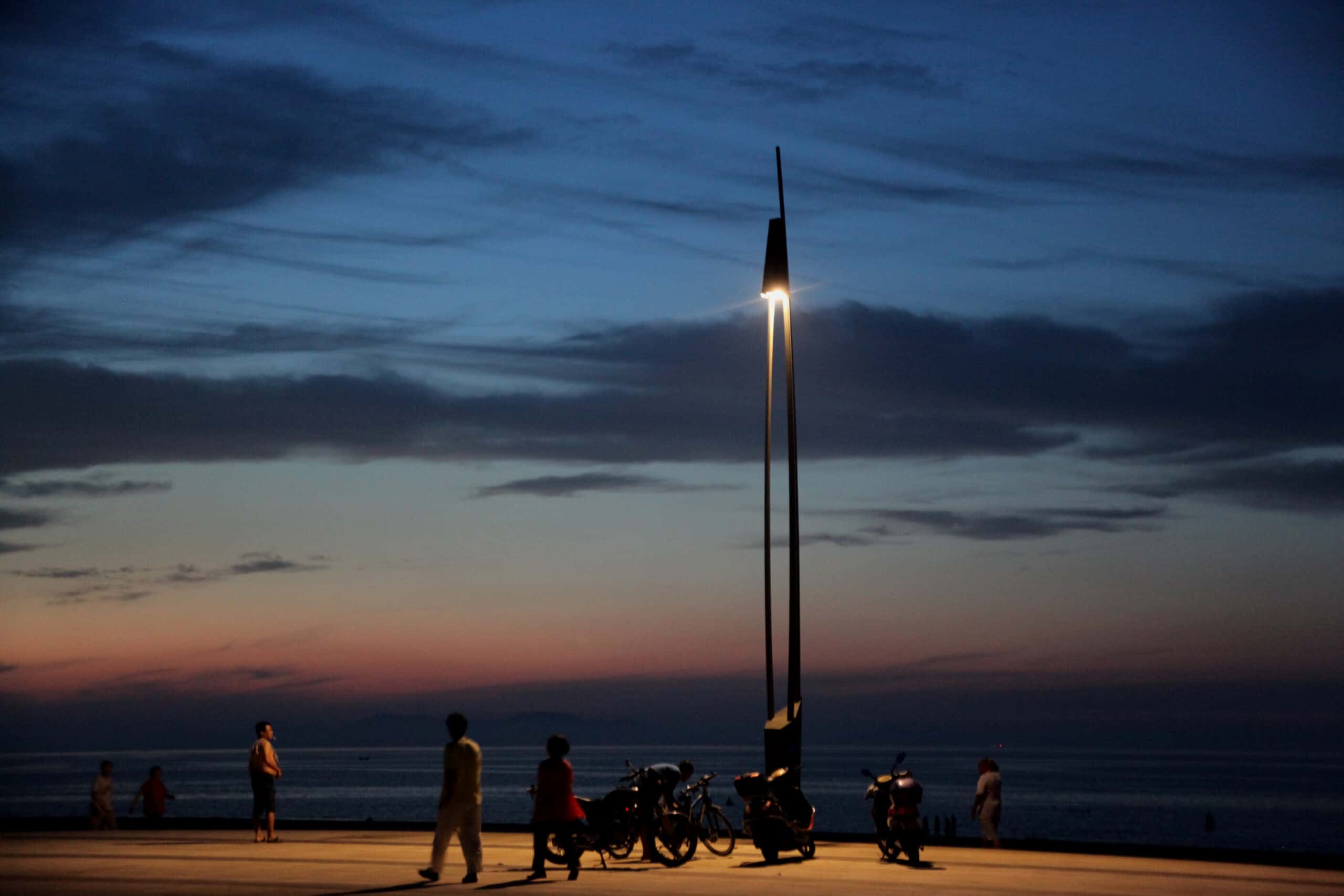

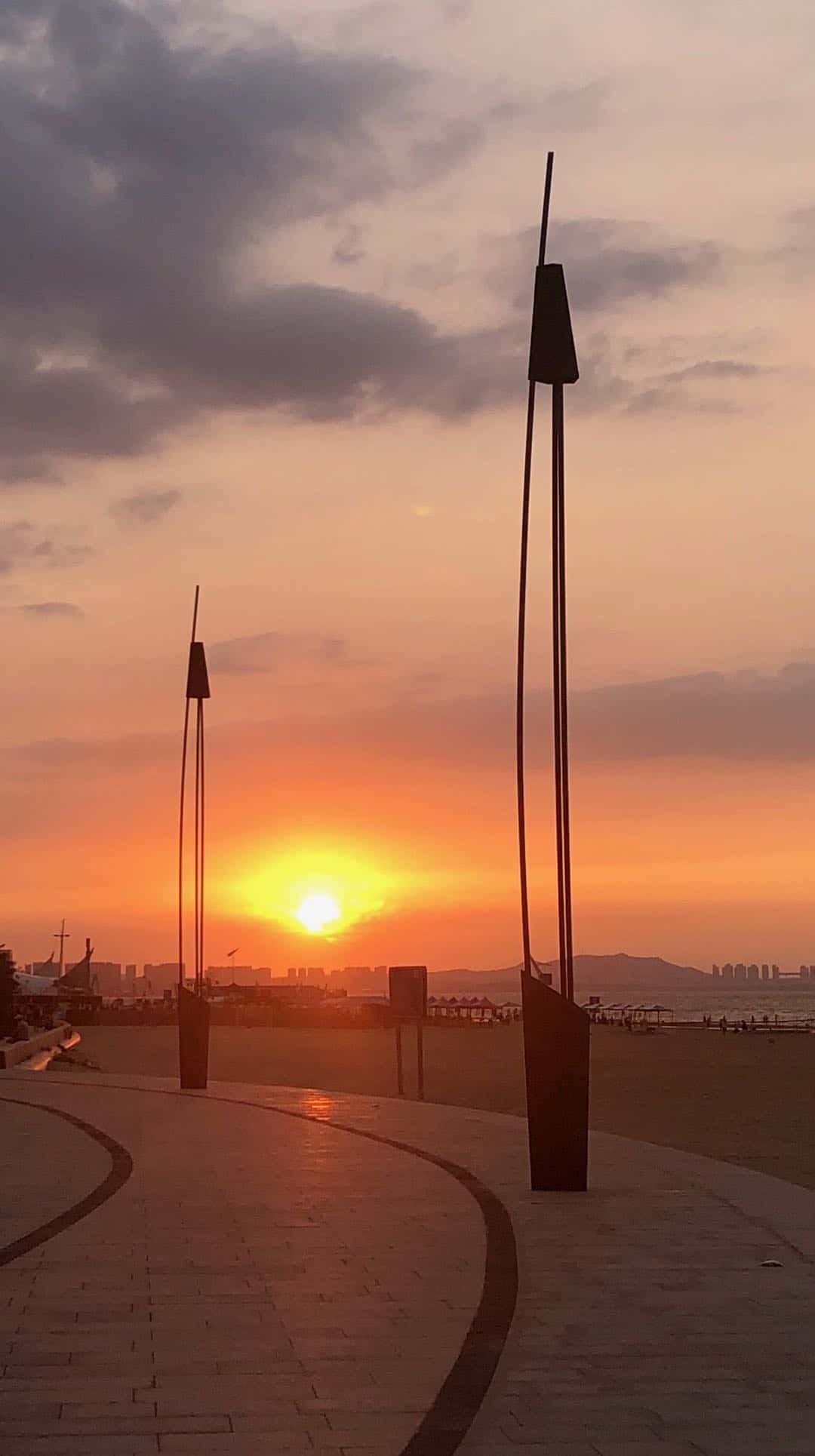

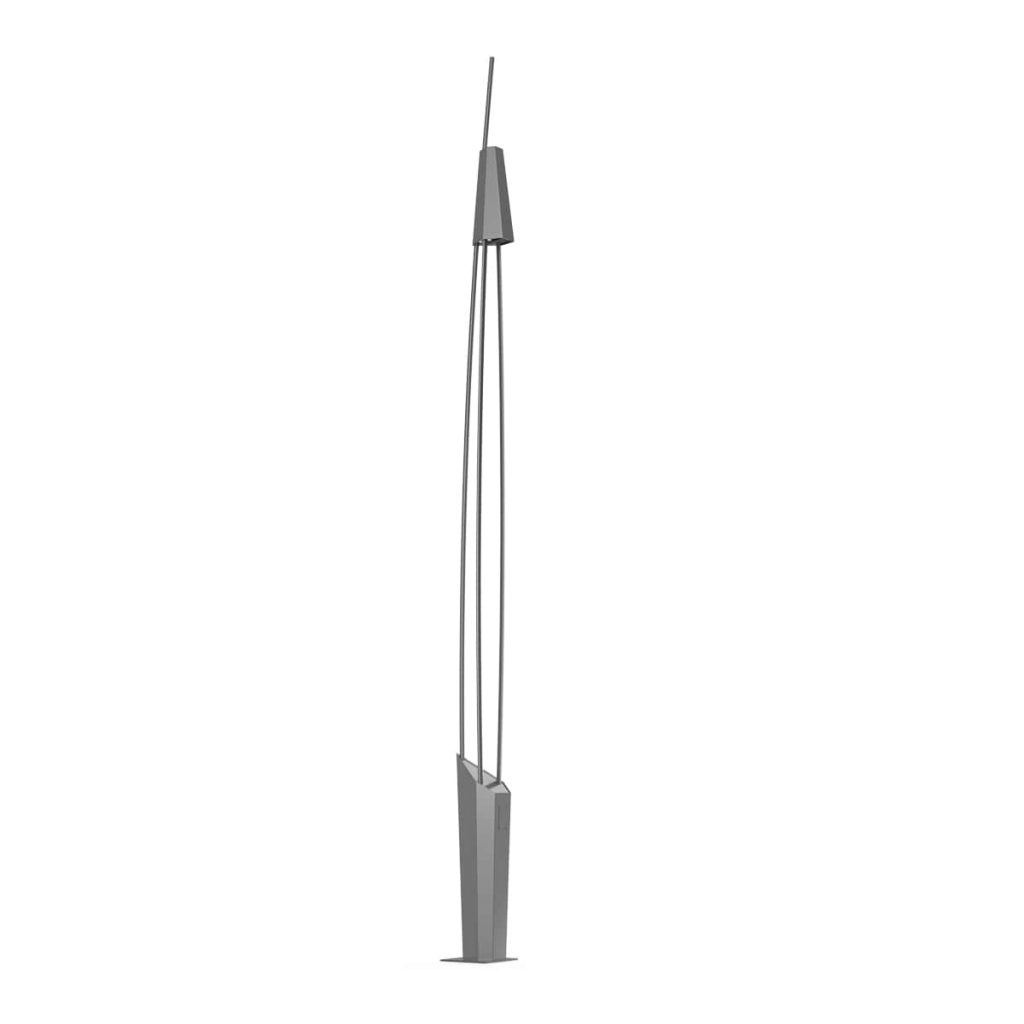

One Sail landscape light is an outdoor lighting system inspired by “sailboats”. It combines the meaning of maritime culture with industrial-grade weather resistance and is designed for coastal landscape belts, municipal cultural squares, cultural and tourism blocks, etc. Its modular structure and high-precision manufacturing process take into account both artistic aesthetics and functional practicality, making it an ideal choice for improving the city’s night image and sustainable lighting.
Intelligent lighting, high efficiency and energy saving

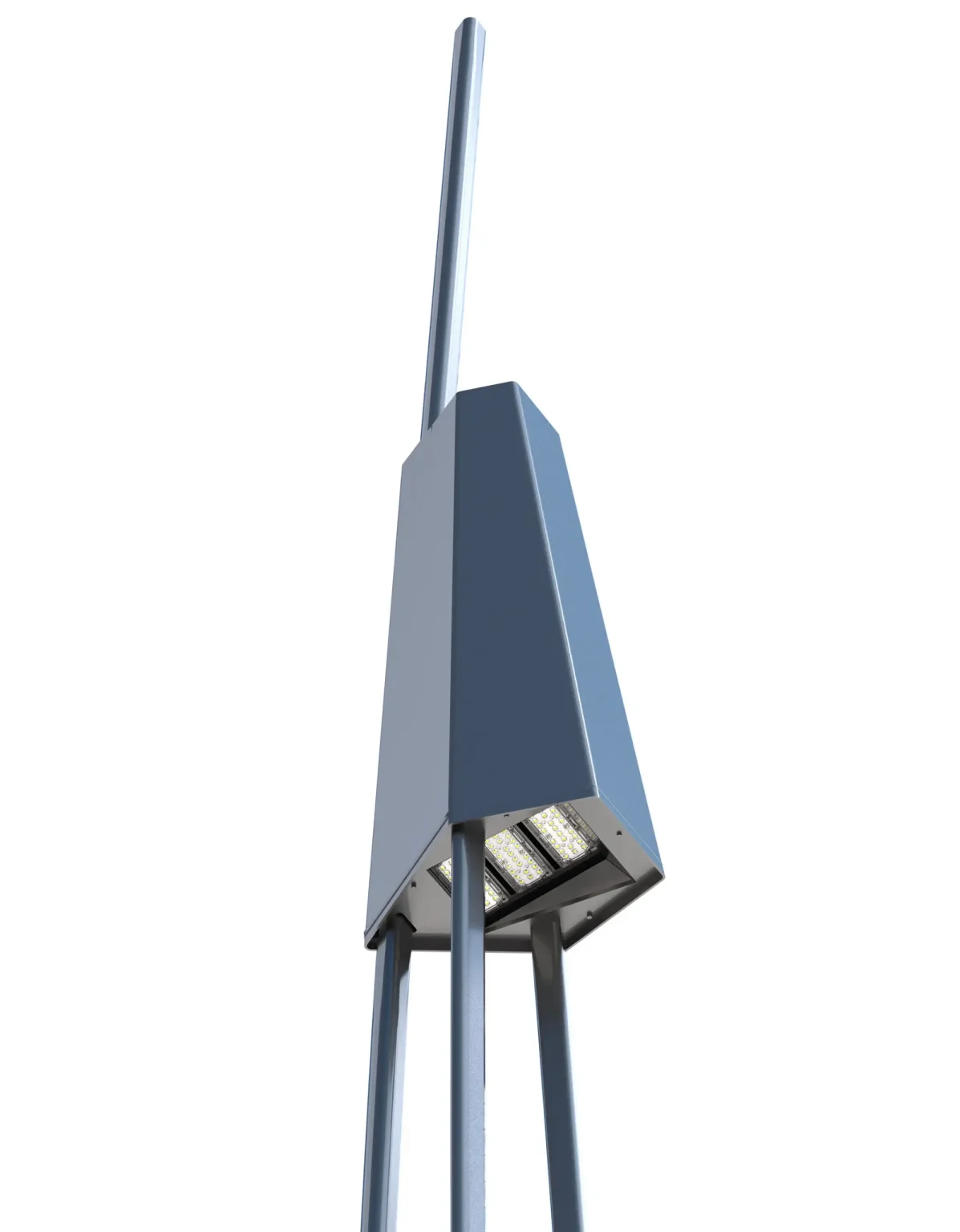

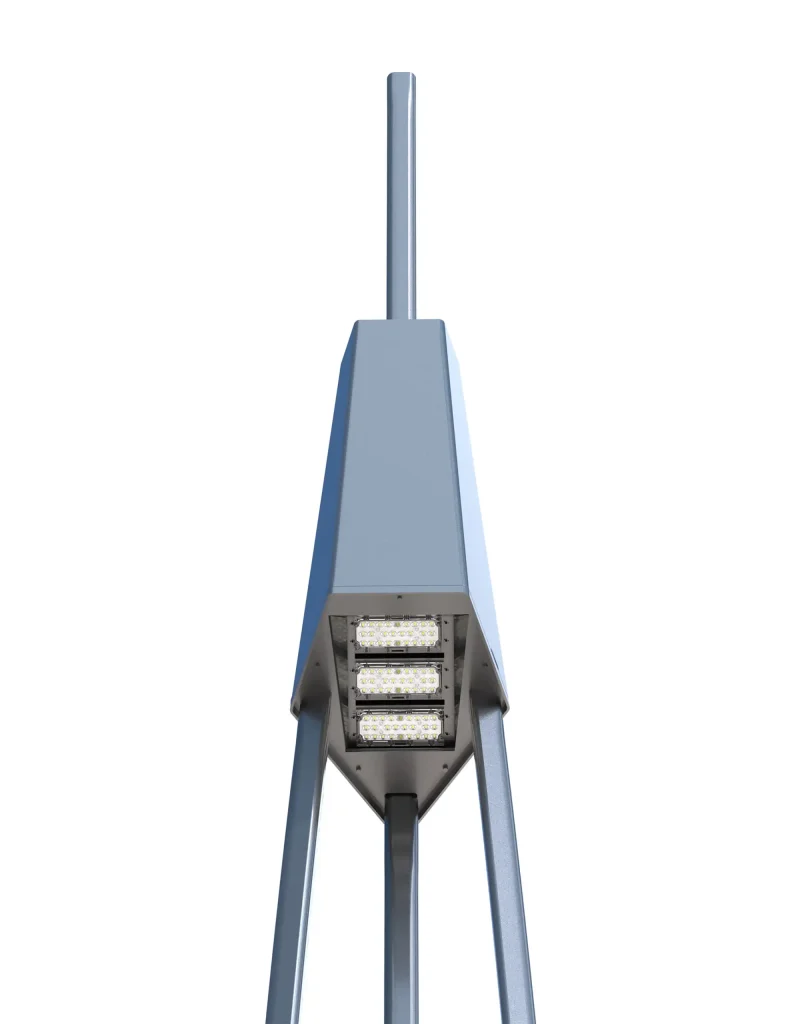

High-light-efficiency LED module: Equipped with 50w/module LED light source (130*130mm standard size), the light efficiency reaches130lm/w, and with asymmetric light distribution lens, it can achieve road illumination uniformity Uo20.6 and glare value UGR<16.
Hardcore weather resistance, no fear of extreme environments
The main structure is made of 201 stainless steel (upper cover assembly) and Q235b galvanized steel (lamp pole and bracket. Throughaser cuting, stretch bending and galvanizing anti-rust technology,it ensures that the wind resistance level reaches 12 (60m/sl, the saspray test exceeds 4800 hours, and it can adapt to the temperature difference of -40’c to 80°c.
Triple protective coating
Epoxy zinc vellow primer + epoxy zinc-rich primer: double anti-rust base, adhesion reaches 1s0 2409 Class 0.<br> Dark gray fluorocarbon topcoat: UV aging resistance, color diference AE<10 (10-year cycle), keeping the salilboat shape new for a long time.
Modular design, easy installation
Sustainability and cultural values
High weather resistance, economical choice
Technical specifications
Protection class：IP 65
Impact Resistance: IK 08
Column: Galvanized Q235B carbon steel
surface preparation: Fluorinated acrylic paint
Service life: 20 years
Warranty Period: 3-5 Years
Working temperature: -40℃ to 60℃
optical information
| light source power | 100W |
| LED module | 130*130 module *2（50w/each） |

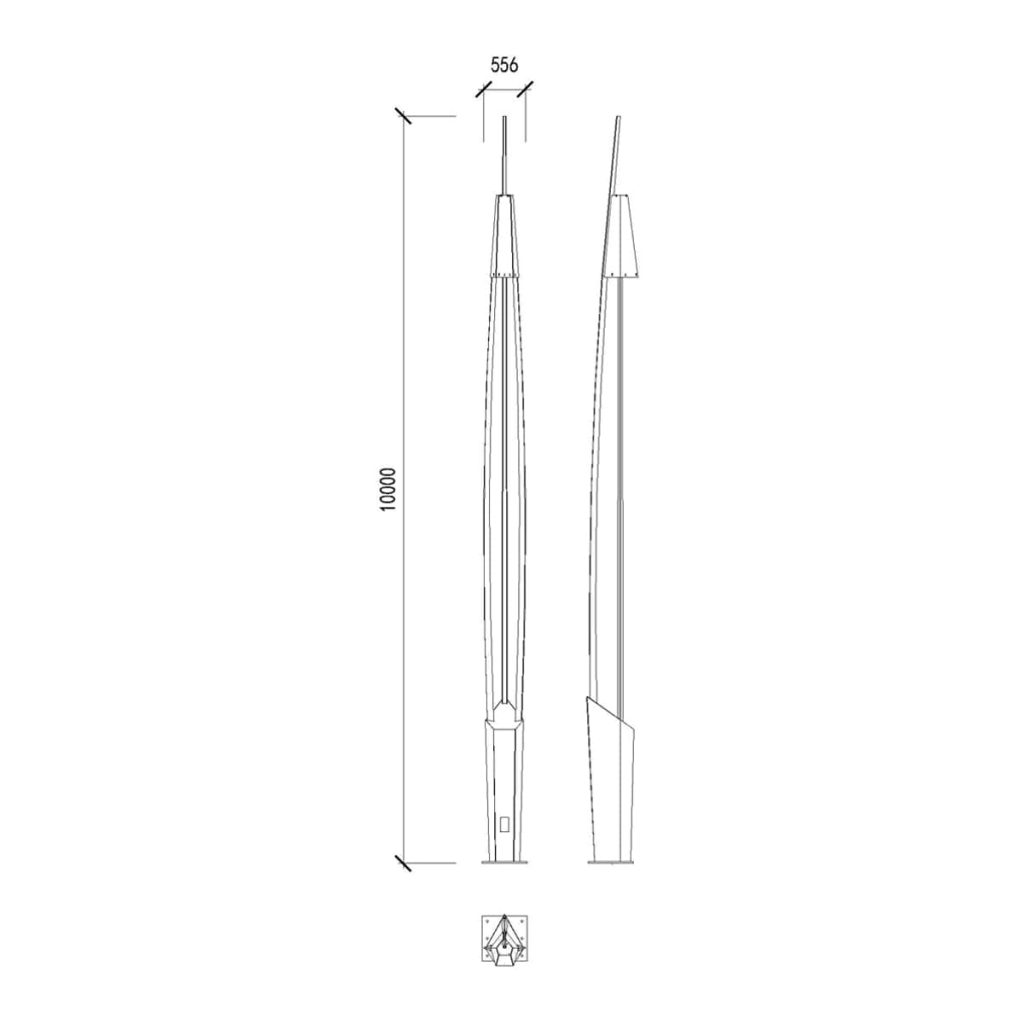

| Installation height | 10m |
| Color | Dark grey / customizable color |
| LED colour temperature | 2700K-4000K / customizable |
| Color rendering index (CRI) | ＞70 |
Electrical information
| input voltage | 100-240ACV |
| Standard power supply | Constant current mode output |
| Ground wire | 1.0mm²*300mm dedicated ground wire, with ￠6 terminal |
| Cable lock | M16*1.5 wire diameter 5-10 (complete set including nut) |
| Waterproof box | 120*120*90，IP65 |
