ALP
Aluminum-based new material lighting solutions suitable for all scenarios of smart cities.


The ALP series is not only a lamp, but also a growing urban plug-in. Through the eternity of aluminum-based materials and the evolutionary power of digital systems, street infrastructure breaks through the boundaries of physics and function and becomes a cell unit of smart city metabolism. With the integrated design of structural light and heat, it redefines the 11-15 meter urban lighting paradigm.

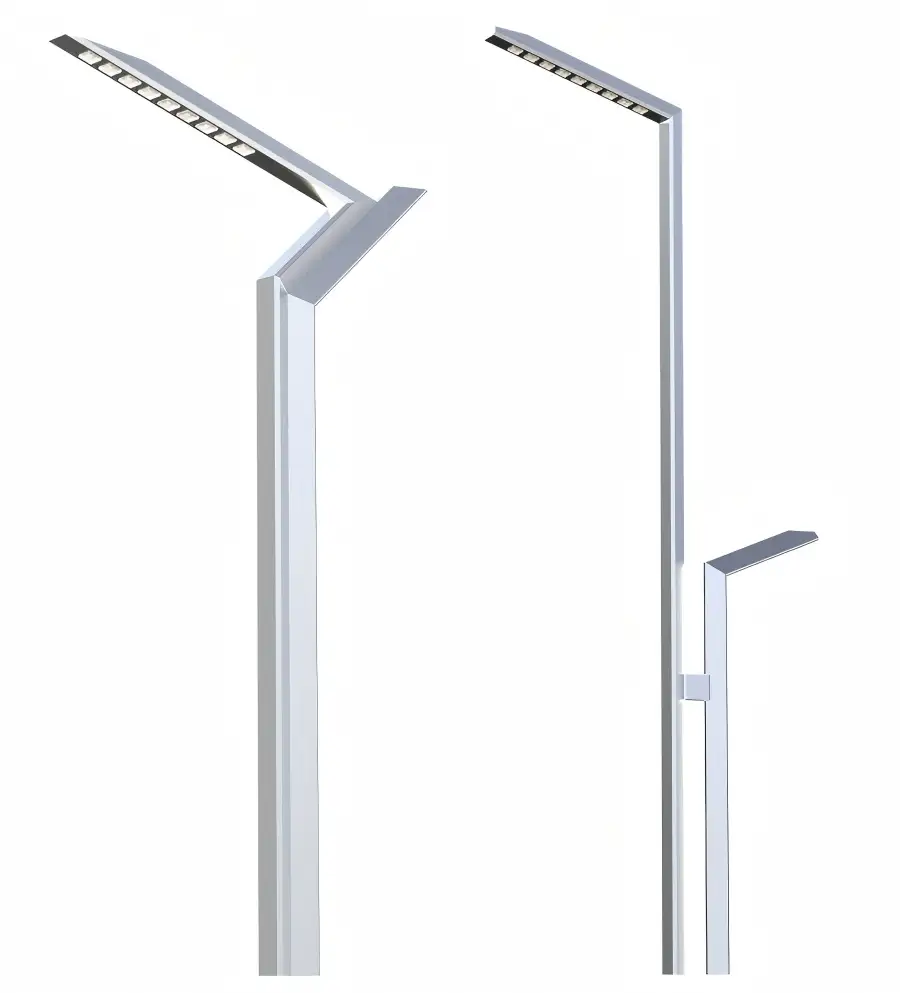

Utilizing a minimalist geometric language with triangular edges, the lamp body adopts parametric topology optimization design. It is not only about appearance but also structure. While ensuring wind pressure resistance, the lamp pole presents a multi-faceted diamond-like shape under natural light, making it highly recognizable.

100% chromate-free process, aluminum recovery rate ≥98%, and eco-design philosophy form the closed-loop lifecycle for new aluminum-based materials. Essentially, it is the resonance between industrial civilization and geochemical cycles—after standing firm in hurricanes for half a century, the lamp pole can return to the furnace with 98% integrity, transforming into the skeleton of next-generation urban furniture. The material thus transcends the definition of “consumables,” becoming an eternal and dynamic carrier of industrial metabolism.

The light source and lamp arm are integrated; the lamp arm serves as the heat sink. It uses 7070 LED chips with large wafers, offering low energy consumption and high lighting efficiency.

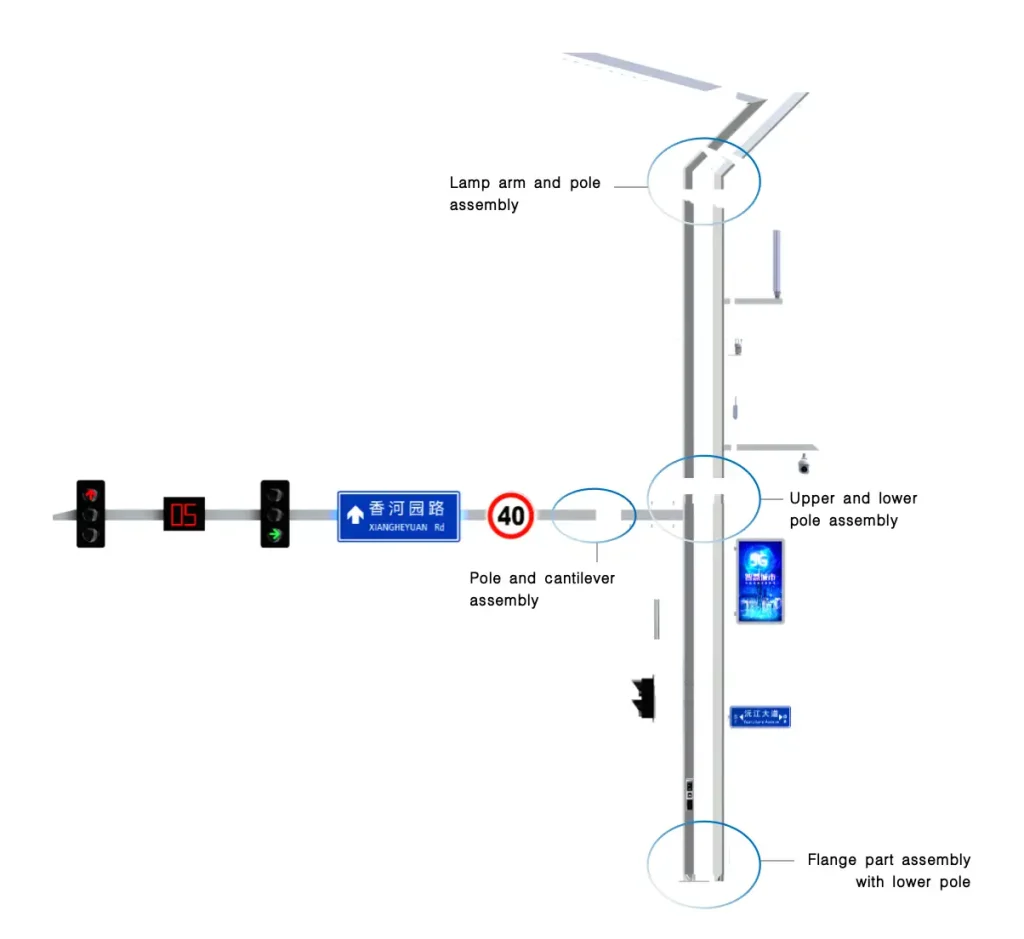

The lamp pole can be freely reassembled like LEGO bricks. Each component is modular, freely selectable, allowing for rapid installation and strong expandability. The lamp pole can be freely reassembled like LEGO bricks. Each component is modular, freely selectable, allowing for rapid installation and strong expandability.

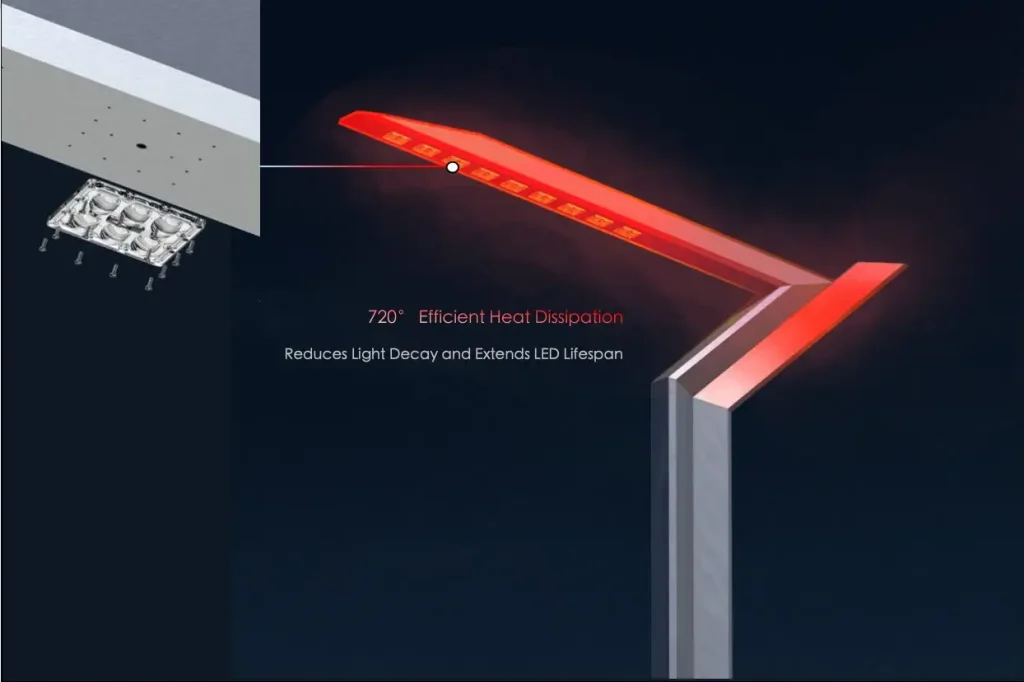

New heat dissipation LED lamp head, light source and lamp arm integrated

OLP developed a new heat dissipation LED lamp head, which has achieved the goal of lamp arm as heat sink, using 7070LED lamp beads with large chips, low energy consumption and high light efficiency, with the lowest power consumption under the same light efficiency, saving 12%-38% energy compared to general 5050 and 3030 lamp beads.
After 4 years of application testing, the heat dissipation data has been kept below 60℃, and the life of the LED light source can be extended from 50,000-90,000 hours to 130,000 hours.

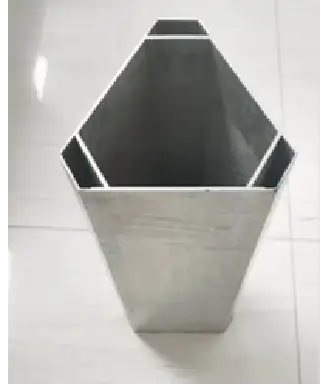

One-piece forming process

Through the triangular cross-section cavity, the shape and structure are integrated. The formed inner cavity serves as the main supporting structure of the pole body to enhance the strength of the pole body, and also serves as a hidden cavity for riveting parts to simplify the appearance, achieving a bending section coefficient Wx ≥ 245cm³, which can bear a wind pressure load of 60m/s (216km/h), which is 40% higher than the traditional cylindrical lamp pole in wind resistance and 28% lighter in weight.

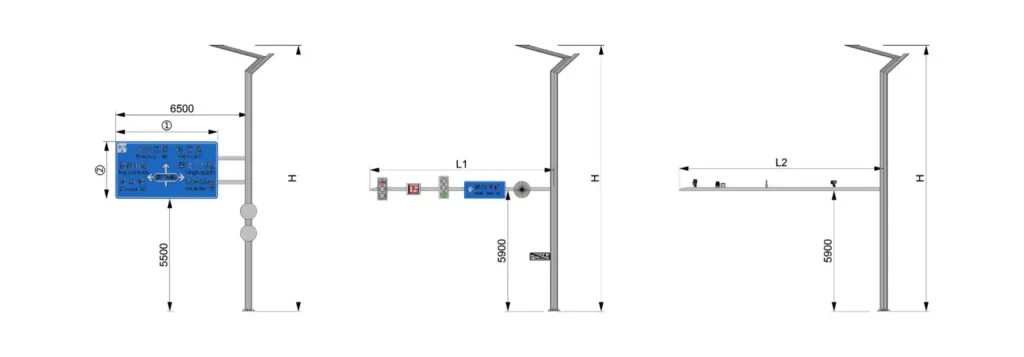

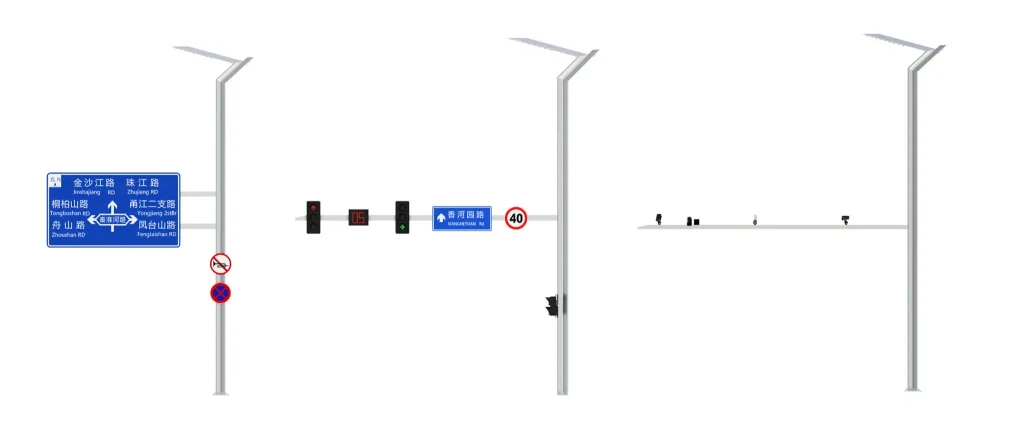

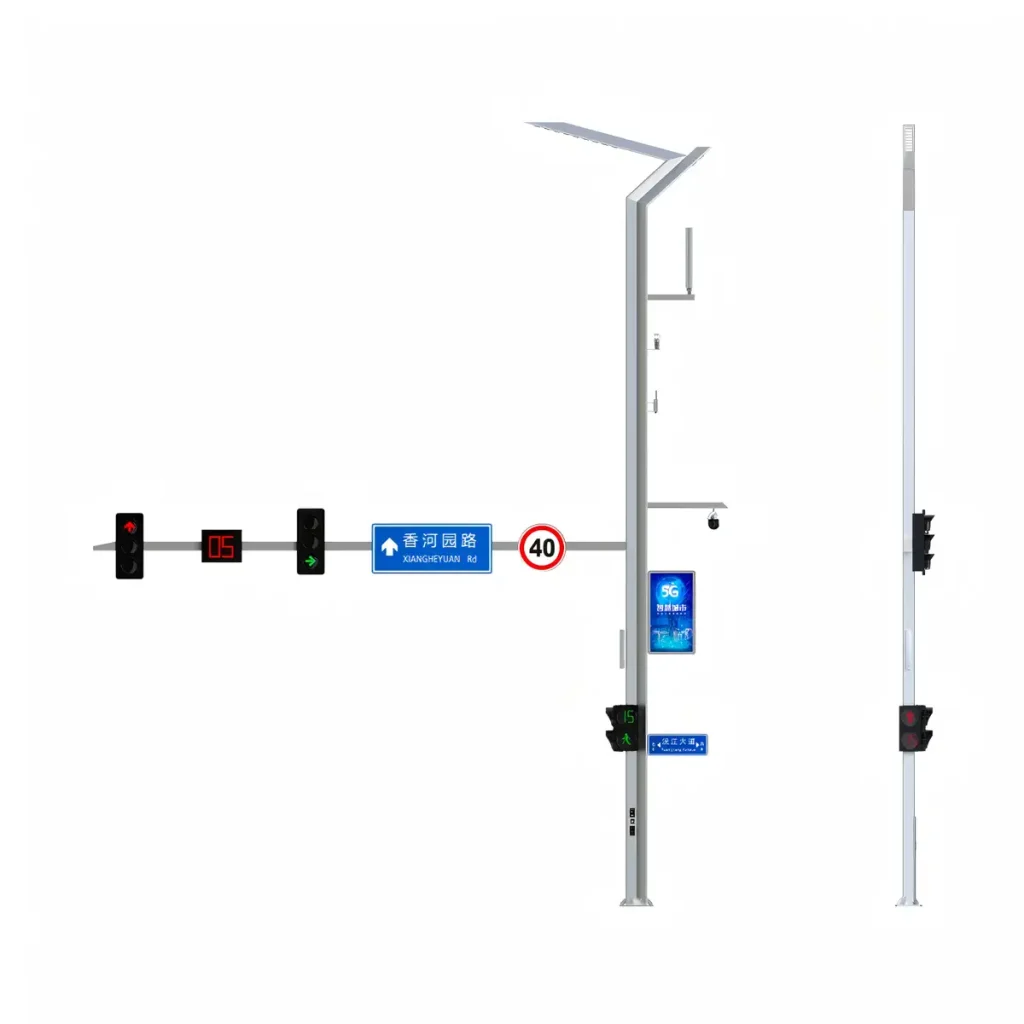

Strong modular expandability

Modules can evolve and grow according to needs, freeing infrastructure from rigid physical forms

Technical specifications

Protection class：IP 65
Protection level against electric shock：Class I
aluminum-based materials
Service life ≈130,000 hours
Working temperature: -40℃ to 60℃
Working environment humidity: 20 to 95% RH
Color rendering index: Ra95
Energy-saving control: intelligent control, three-in-one dimming (0-10Vdc 10VP signal and resistor) Strong modular expandability

Protection class：IP 65
Protection level against electric shock：Class I
aluminum-based materials
Service life ≈130,000 hours
Working temperature: -40℃ to 60℃
Working environment humidity: 20 to 95% RH
Color rendering index: Ra95
Energy-saving control: intelligent control, three-in-one dimming (0-10Vdc 10VP signal and resistor) Strong modular expandability

Protection class：IP 65
Protection level against electric shock：Class I
aluminum-based materials
Service life ≈130,000 hours
Working temperature: -40℃ to 60℃
Working environment humidity: 20 to 95% RH
Color rendering index: Ra95
Energy-saving control: intelligent control, three-in-one dimming (0-10Vdc 10VP signal and resistor) Strong modular expandability

Protection class：IP 65
Protection level against electric shock：Class I
aluminum-based materials
Service life ≈130,000 hours
Working temperature: -40℃ to 60℃
Working environment humidity: 20 to 95% RH
Color rendering index: Ra95
Energy-saving control: intelligent control, three-in-one dimming (0-10Vdc 10VP signal and resistor) Strong modular expandability

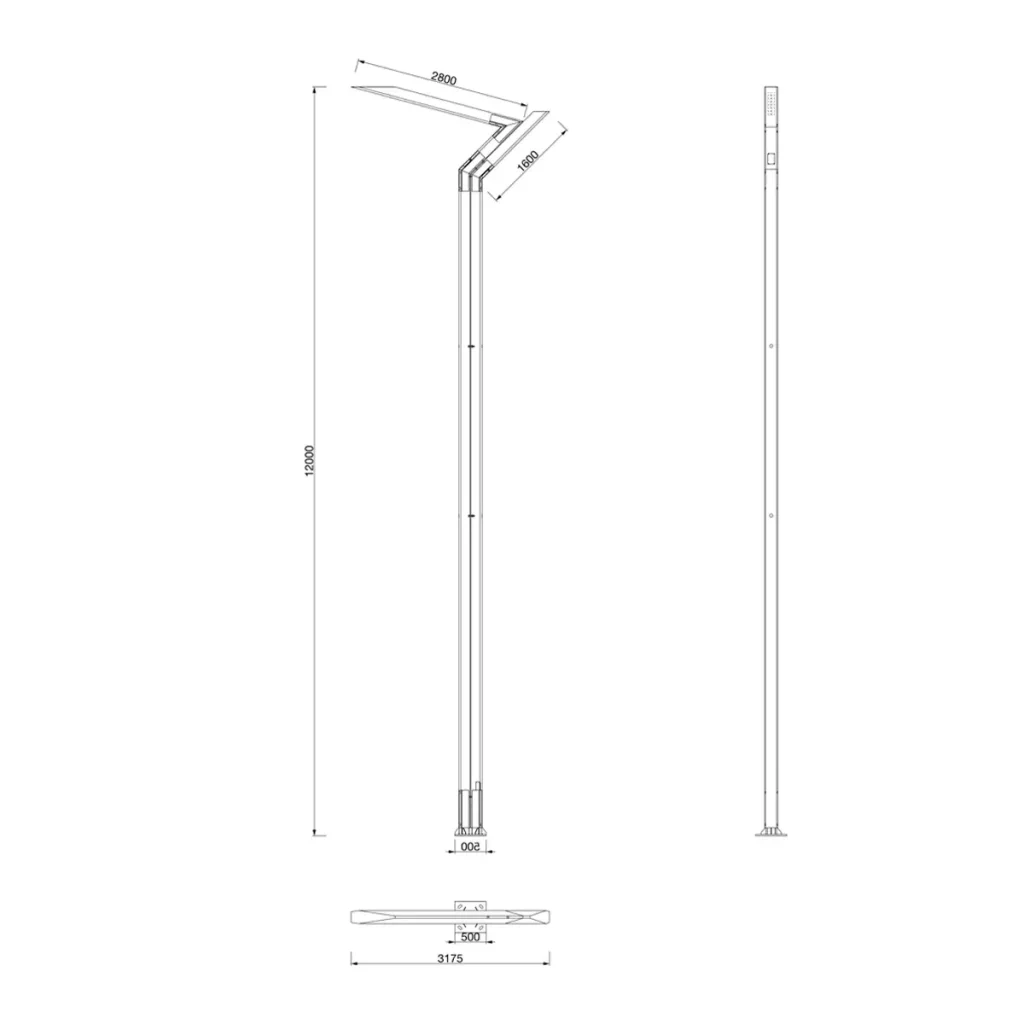

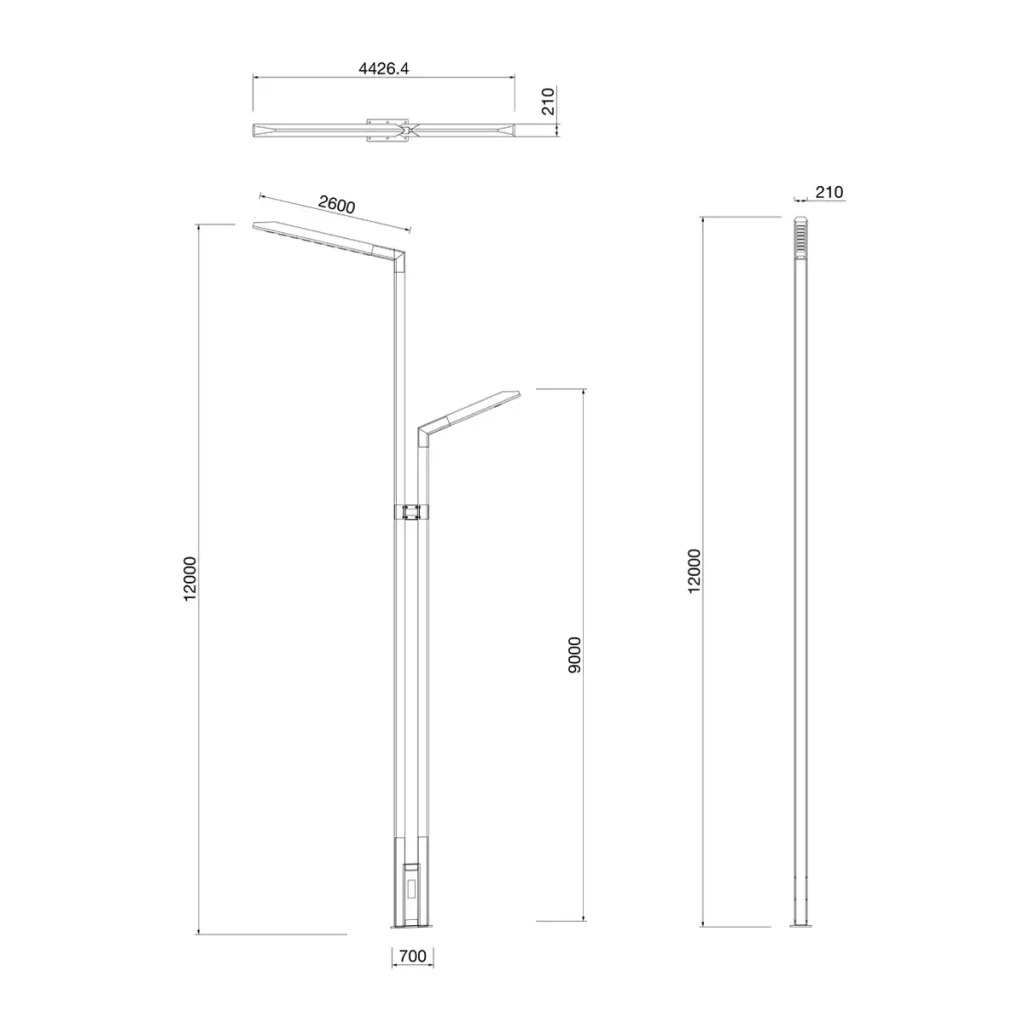

Product Configuration

Product specificationsLighting sourceAuxiliary road light sourceWorking voltageColor temperatureStreet light spacing
11mLED210WLED35W100-240ACV3000K 4000 5000K(Optional)36M
12mLED245WLED70W100-240ACV3000K 4000 5000K(Optional)40M
13mLED280WLED70W100-240ACV3000K 4000 5000K(Optional)42M
14mLED315WLED105W100-240ACV3000K 4000 5000K(Optional)46M
15mLED350WLED105W100-240ACV3000K 4000 5000K(Optional)50M
